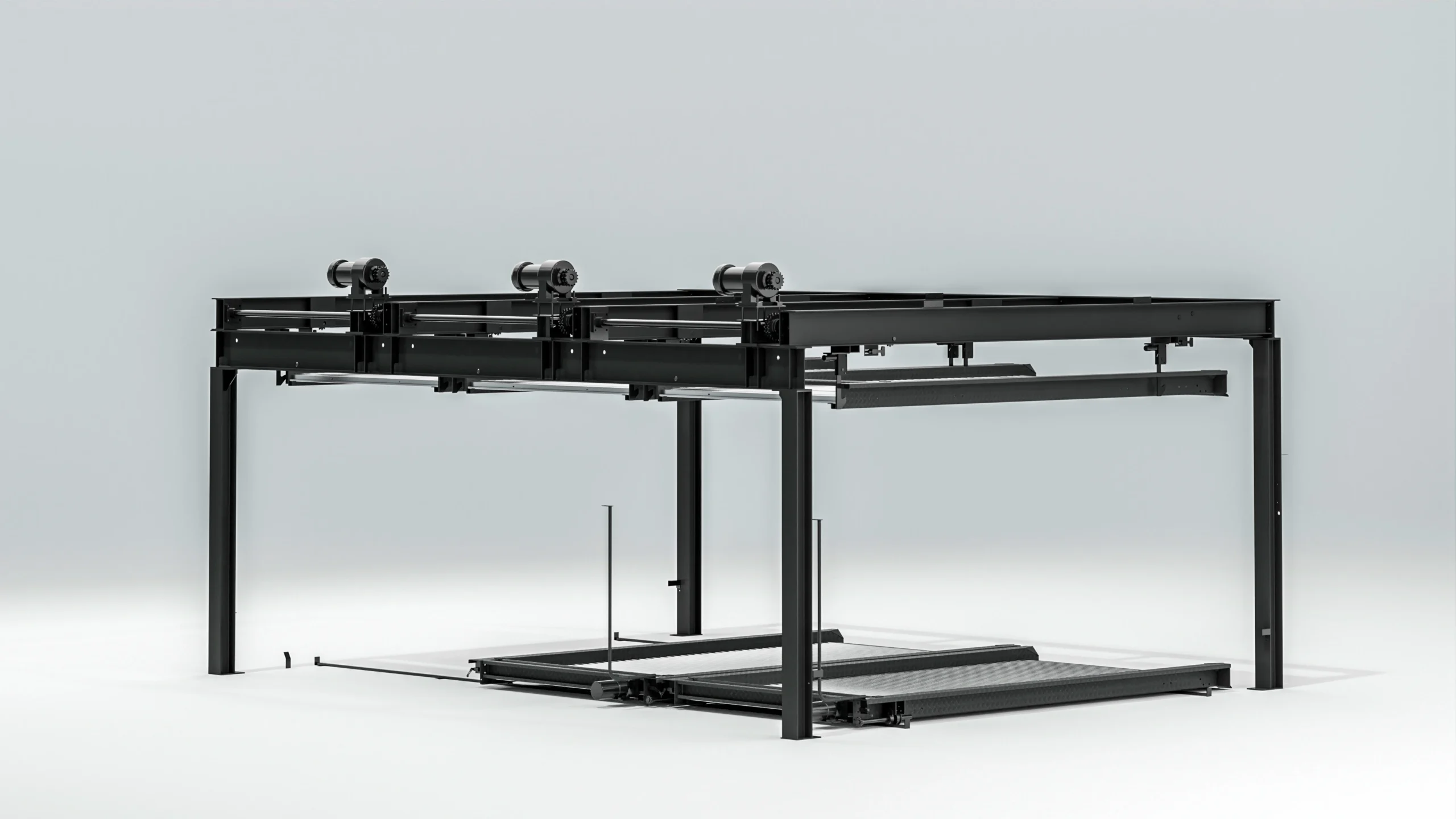

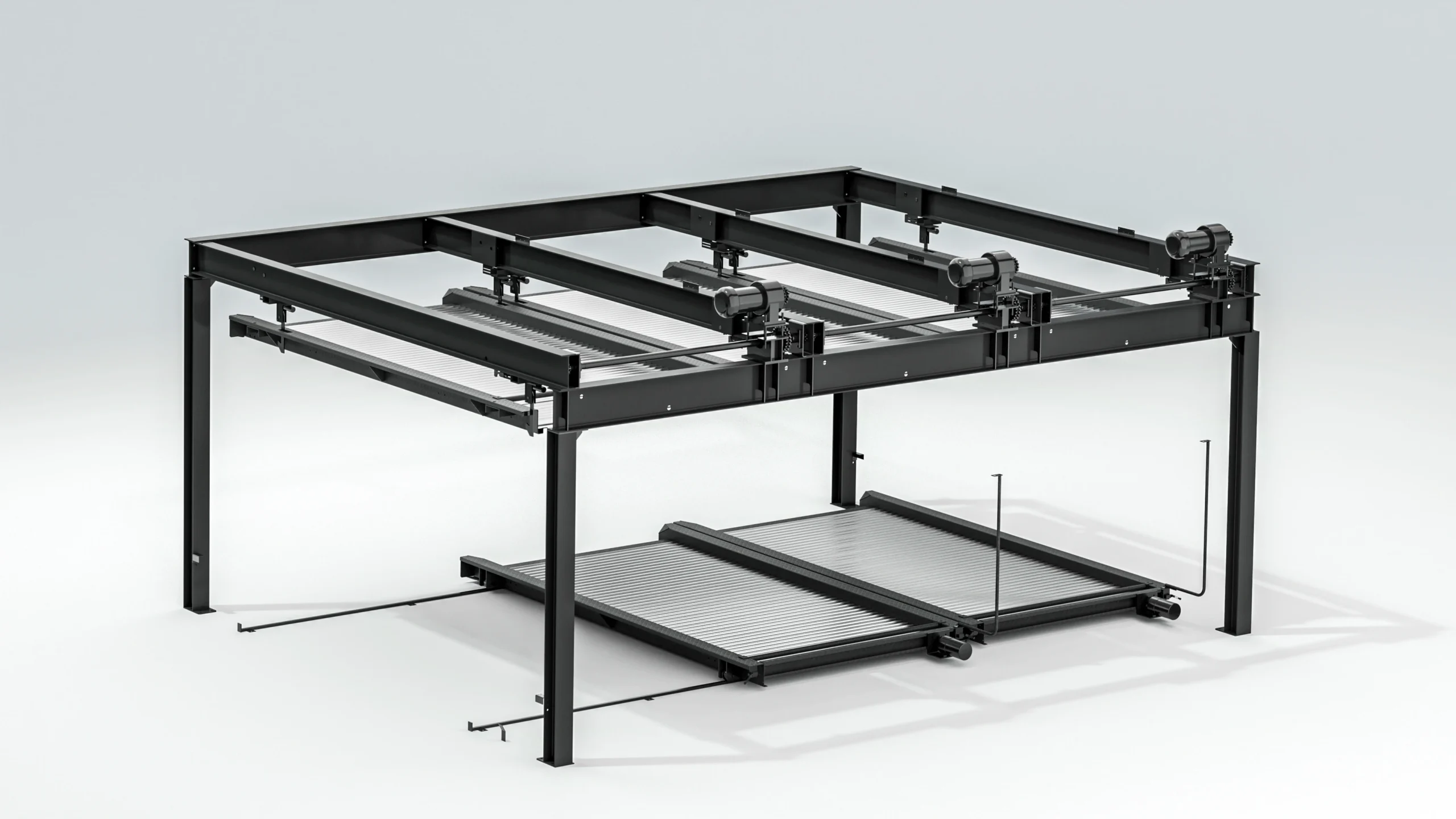

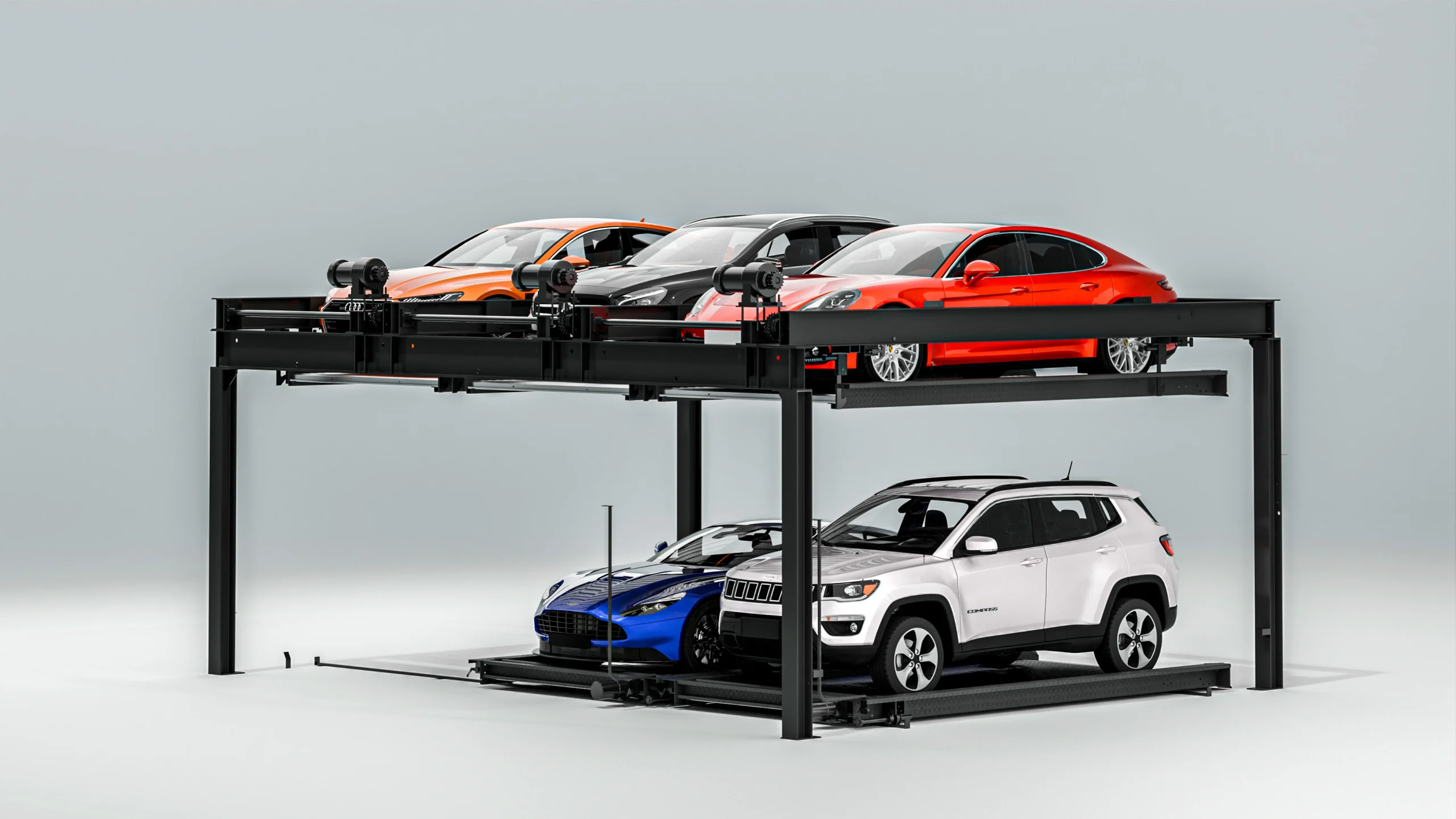

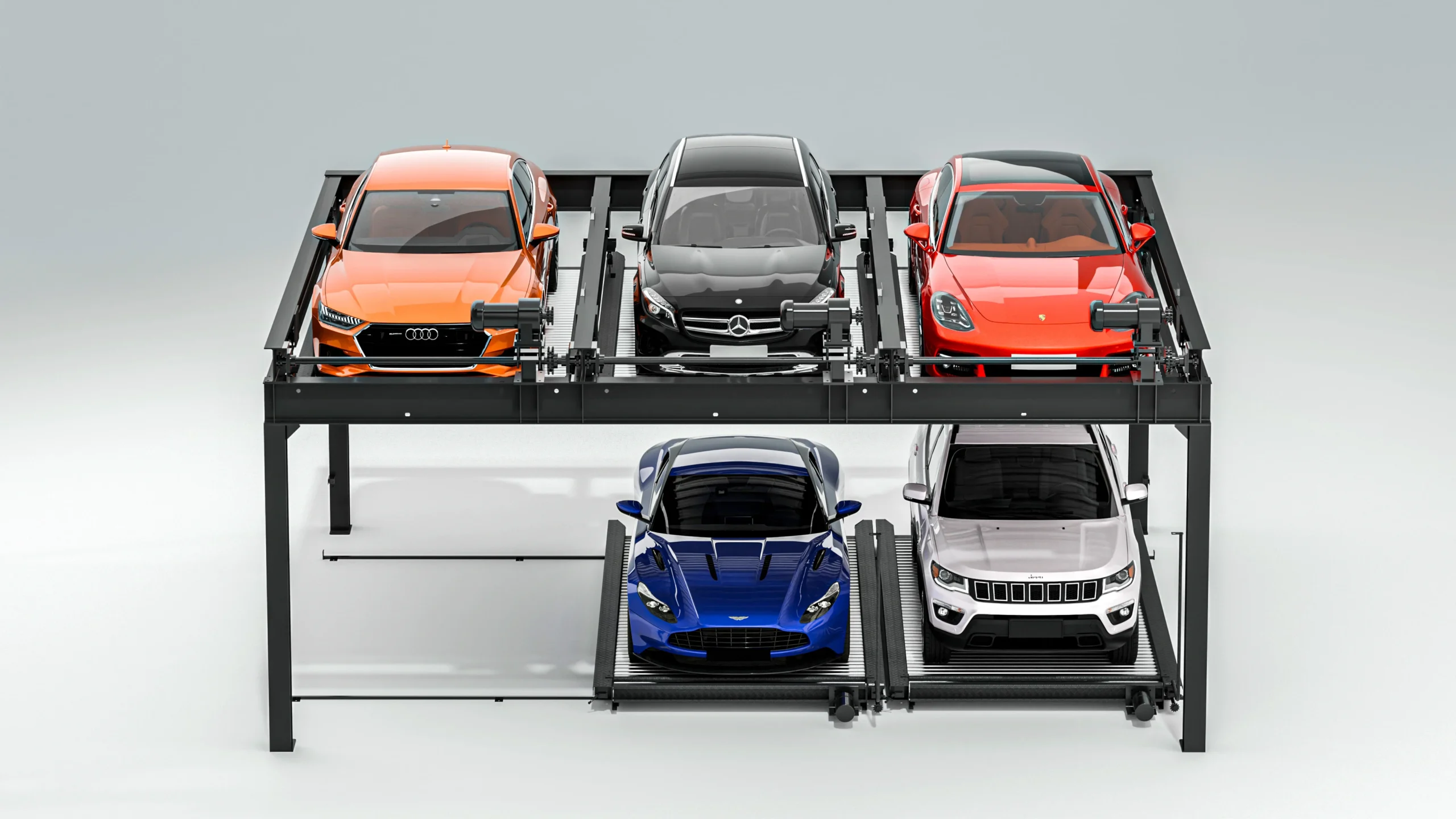

Puzzle Parking System
Professional motor-driven puzzle parking system with 2-6 vertical parking levels, independent space utilization, and multi-layer safety protection. Corrosion-resistant steel construction, ID card automatic operation—perfect for space-constrained urban commercial and residential parking projects.
Puzzle Parking System | Modular Vertical Parking | SHININNOVATION
SHININNOVATION puzzle parking system—2-6 vertical levels, space-saving, anti-fall safety design, corrosion-resistant steel. Ideal for urban commercial/residential parking projects with ID card operation.
Product Brand: SHININNOVATION
Product Currency: USD
Product In-Stock: InStock
Why Choose Our SHININNOVATION Puzzle Parking System?
Unmatched Space Utilization
2-6 independent vertical parking levels, maximizes parking capacity in limited urban spaces without redundant area
Reliable Lifting System
Motor-driven with chain/steel rope lifting, stable operation for long-term daily use
Built-In Safety Protection
Anti-fall safety hook device, collision & overload prevention, emergency stop button on operation panel

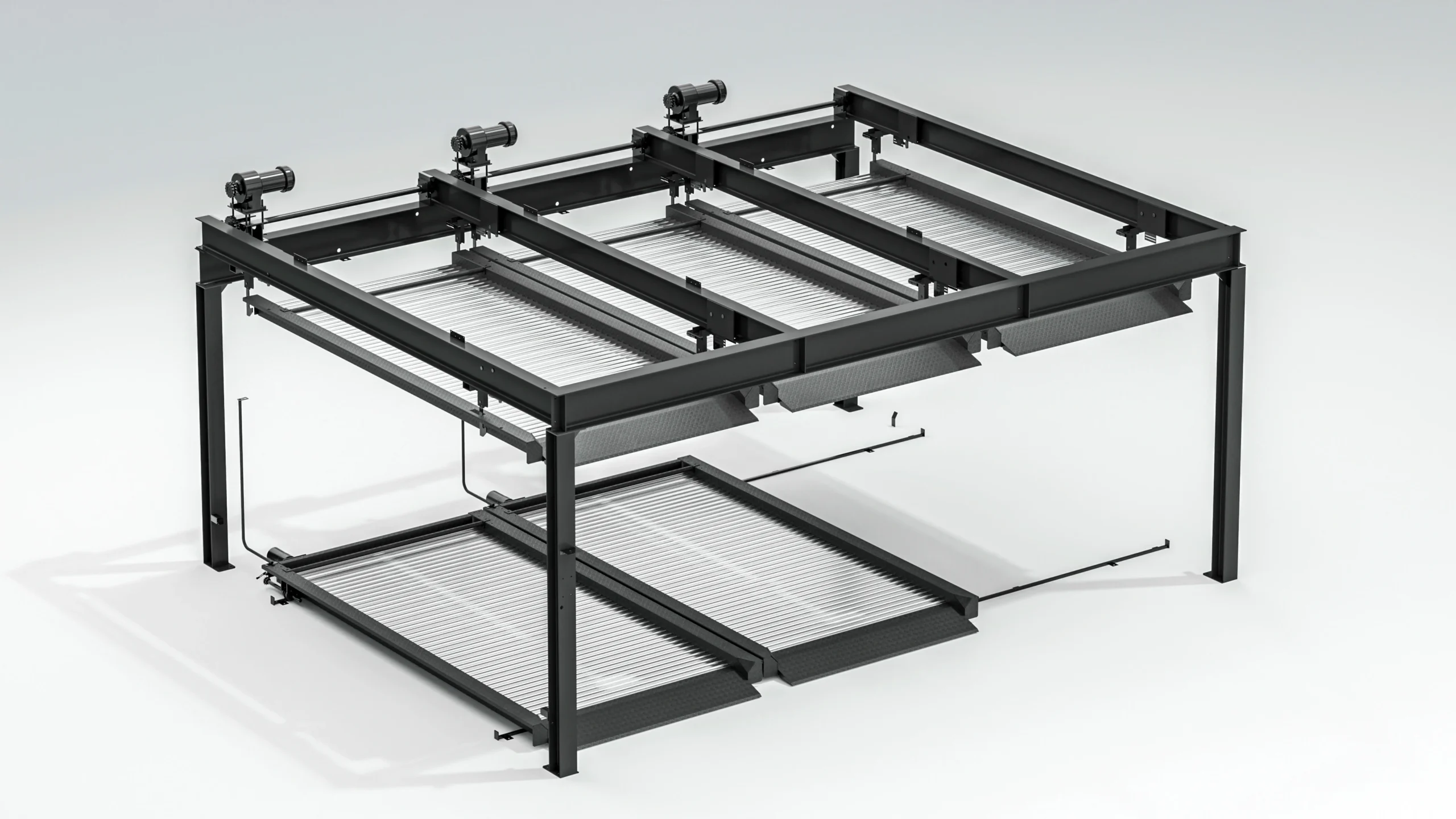

Flexible Horizontal Movement
Spare parking space on each non-top layer, front-rear guide rails for smooth platform horizontal movement
Durable Corrosion-Resistant Construction
Steel parts sandblasted + anti-corrosion primer + top finish coating, anti-rust for all working environments
Intuitive Automatic Operation
ID card control mode, electromagnetic lock release, simple operation with no professional training
Wide Voltage Adaptation
220V-380V / 50Hz-60Hz / 1Ph-3Ph power supply, compatible with global regional power standards
Puzzle Parking System Technical Specifications
|
Model
|
PZSN20/2
|
PZSN25/2
|
|
|
|---|---|---|---|---|
|
System Type
|
Modular puzzle parking system
|
Modular puzzle parking system
|
|
|
|
Compatible Vehicle Size
|
5000x2100x1550mm
|
5000x2100x1900mm
|
|
|
|
Drive Mode
|
Motor driven + Roller chain lifting system
|
Motor driven + Roller chain lifting system
|
|
|
|
Per Space Loading Capacity
|
2000kg
|
2500kg
|
|
|
|
Operation Mode
|
ID card automatic control
|
ID card automatic control
|
|
|
|
Lock Release Device
|
Electromagnetic lock release
|
Electromagnetic lock release
|
|
|
|
Power Supply/HPU
|
220V-380V / 50Hz-60Hz / 1Ph-3Ph
|
220V-380V / 50Hz-60Hz / 1Ph-3Ph
|
|
|
|
Safety Features
|
Anti-fall hook, collision/overload protection, emergency stop
|
Anti-fall hook, collision/overload protection, emergency stop
|
|
|
|
Steel Surface Treatment
|
Sandblasting + anti-corrosion primer + top color coating
|
Sandblasting + anti-corrosion primer + top color coating
|
|
|
Ideal Applications for Our Puzzle Parking System
Our modular puzzle parking system is specially engineered for space-constrained urban areas and is the perfect solution for various B2B parking projects, including:
Residential Developments
High-rise apartments, luxury residential communities, gated villas (2-6 levels fit building basement/ground floor space)
Commercial Real Estate
Small and medium shopping malls, office buildings, hotel parking lots, retail store front parking
Urban Public Facilities
Community service centers, hospital outpatient building parking, school campus parking
Industrial & Commercial Zones
Small industrial parks, logistics small hubs, commercial street parking spots
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Core Design & Engineering Highlights
Dual Lifting Structure
Chain/steel rope combined lifting system, balanced force bearing, reduces equipment wear and extends service life
Layered Spare Space Design
Spare parking space on each non-top layer, avoids platform movement interference, improves parking retrieval efficiency
Integrated Safety System
Three-dimensional protection (anti-fall, anti-collision, anti-overload) + emergency stop button, compliant with international parking equipment safety standards
Professional Steel Anticorrosion Process
Three-step surface treatment (sandblasting → primer → top coating), effectively resists humidity, corrosion and external damage
Industry-Leading 5-Year Warranty
- What's Covered
- Lifting structure & frame
- Hydraulic arms & cylinders
- Motors & electrical components
- All core mechanical parts
- Our Warranty Advantage
- Far exceeds competitor standards
- Premium quality components used
- Strict quality control processes
- Hassle-free claim process
- Our Commitment
- No hassle for car enthusiasts
- Free replacement parts (if needed)
- Professional technical support
- Long-lasting product reliability
Frequently Asked Questions About Puzzle Parking System
Our standard puzzle parking system supports 2-6 vertical levels, and we can provide customized design according to your project's space and parking capacity requirements.
It is equipped with an anti-fall safety hook device, collision and overload protection systems, and an emergency stop push button on the operation panel to ensure full-process safety.
Yes, our system supports 220V-380V voltage, 50Hz-60Hz frequency, and 1Ph-3Ph power supply, which is compatible with most global regional power standards.
The steel parts adopt a three-step surface treatment process (sandblasting + anti-corrosion primer + top coating), and regular simple cleaning is enough to maintain the anti-corrosion effect; no frequent maintenance is required.
Get a Custom Quote for Your Puzzle Parking Project
Looking for a space-saving modular vertical parking solution for your urban commercial or residential project?
SHININNOVATION puzzle parking system with 2-6 levels, professional safety design and global power adaptation is your ideal choice. We provide one-stop service from custom design, installation to lifelong maintenance.
-
